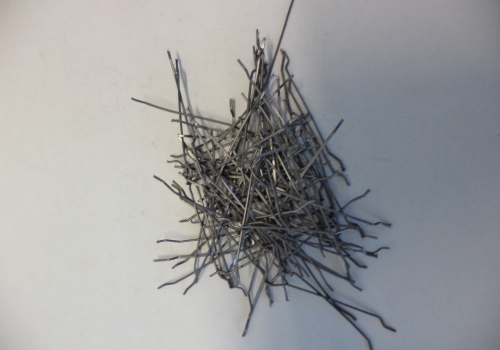

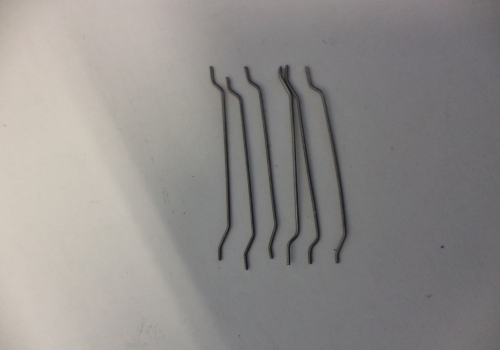

Deformed elements of cold-drawn round wire – low carbon.
Bounding concrete to the traditional materials.
C9D (according with EN 16120-2)

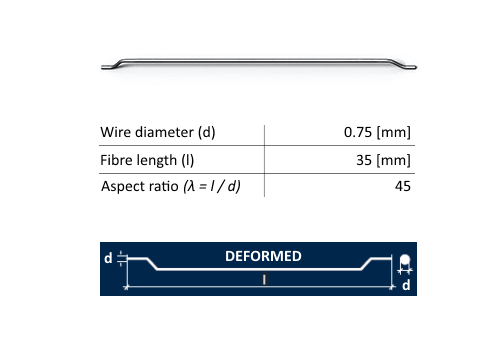

| Nominal | Tolerance | Geometry | |
|---|---|---|---|
| Wire diameter (d) | 0.75 [mm] | [0.71 – 0.79] [mm] |  |
| Fibre length (l) | 35 [mm] | [31 – 39] [mm] | |
| Aspect ratio (λ = l / d) | 45 | [42 – 48] |
| Tensile Strength | 1320 [N/mm²] | [1221 – 1419] [N/mm²] |
| Modulus of Elasticity | ± 200 000 [MPa] | |

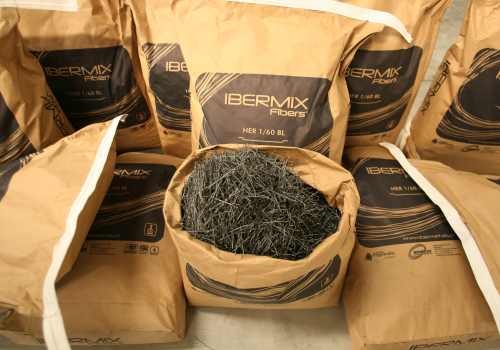

| Bag Weight | Number of fibers / kg | Pallet standard | ||
|---|---|---|---|---|

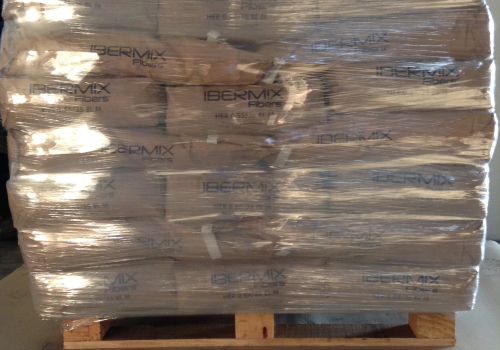

| 20 Kg | 8240 | 1200 Kg - 60 paper bags | ||
 |
||||
Other specifications on request.
Steel fibers suitable for “shotcrete”, tunneling construction, slope stabilization and fabrication of pre-cast elements.
Examples:
